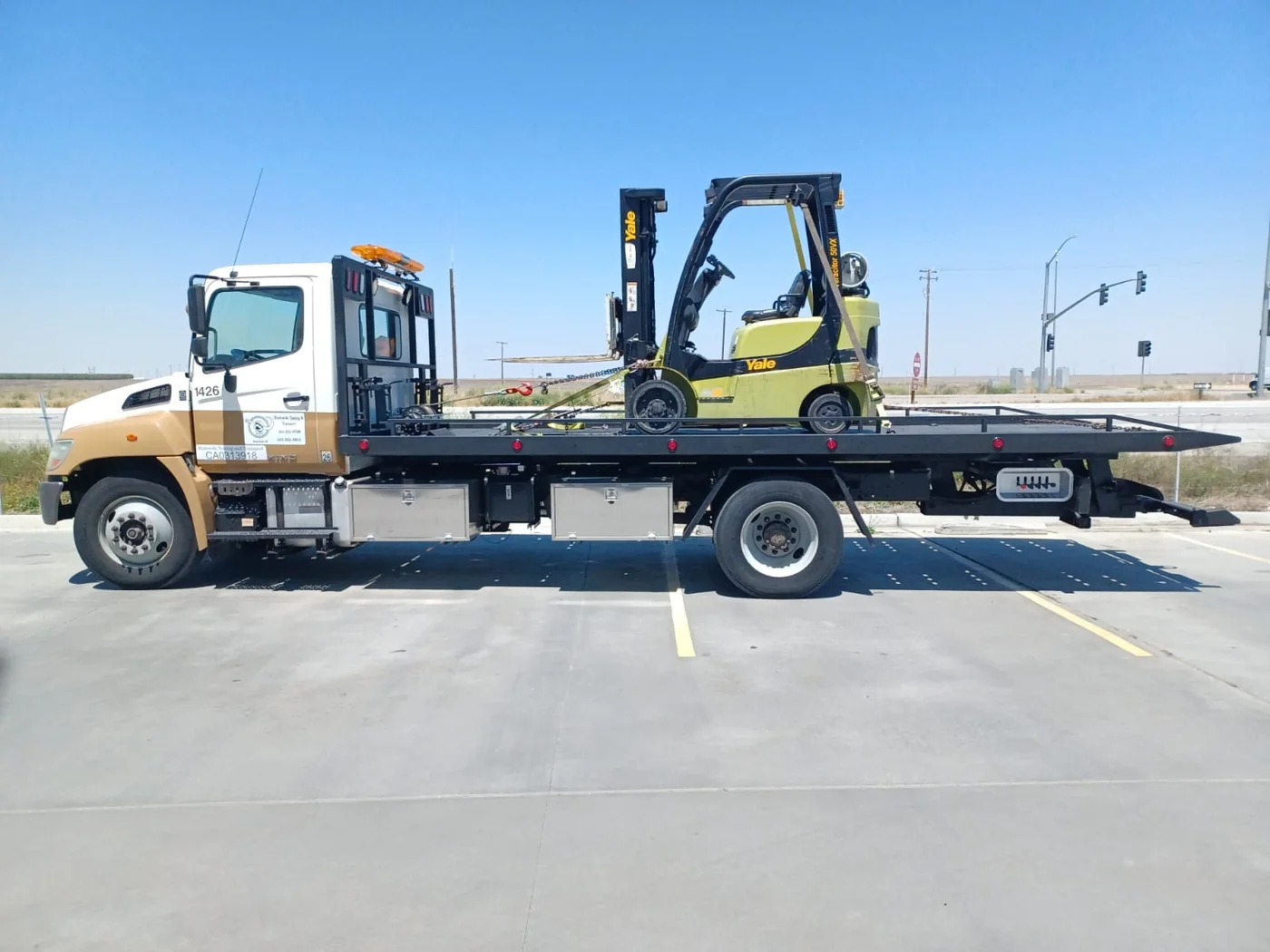

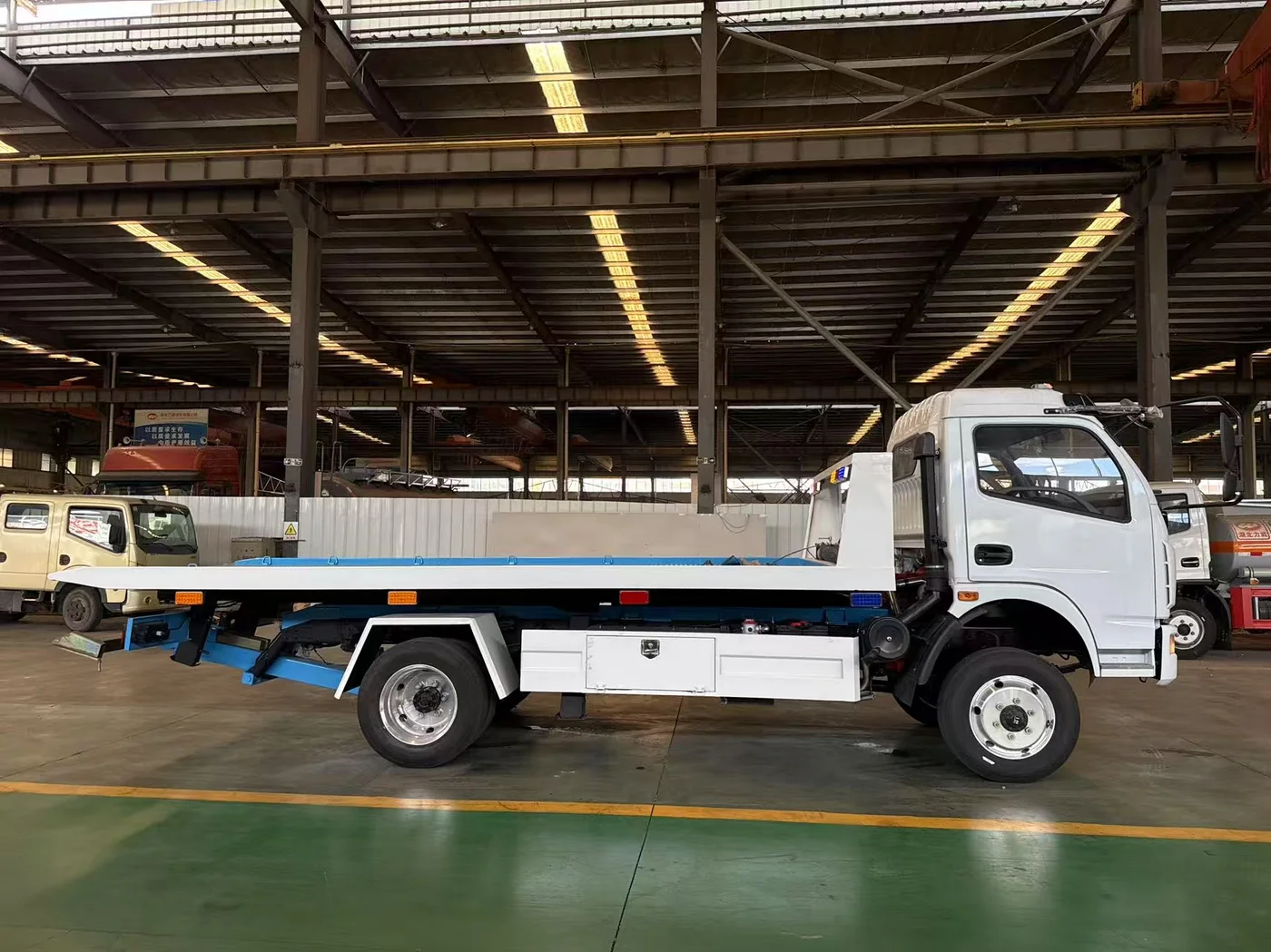

Flatbed carriers
4 – 20 ton

A slide-and-tilt deck drops to a low load angle so a casualty drives or winches straight on — then a built-in underlift lets you tow a second vehicle behind. USA, AU and EU styles, built to your chassis.

Request Pricing WhatsApp Us
4–20TDeck Capacity
Slide+TiltLow Load Angle
9 mMax Bed Length
32 tMax Tow (underlift)
What it is

Load it flat, tow one more behind

A flatbed carrier's deck slides back and tilts down to the ground, giving a low load angle so a car, van or light truck drives on under its own power or is winched on undamaged — ideal for accident vehicles, EVs, low-clearance cars and equipment. Every iTruck carrier also carries a hydraulic underlift, so once the deck is loaded you can tow a second vehicle behind it. Decks are built in USA slide, Australian tilt-tray and European styles, plus lay-flat, rotating and double-deck configurations — all engineered to your chassis.

Model Range

Carrier line-up & capacities

Model Deck / winch Underlift (tow) Bed size (L × W) Deck plate
4 T4 t3 t (6 t)~5.6 × 2.35 mQ235 / Q345R · 3 mm
5 T5 t5 t (10 t)~6.5 × 2.5 mQ235 / Q345R · 4 mm
6 T6 t6 t (12 t)~7.0 × 2.5 mQ235 / Q345R · 4 mm
8 T8 t5–8 t (10–16 t)7.0–9.0 × 2.5 mQ235 / Q345R · 6 mm
10 T10 t10 t (20 t)8.0–9.0 × 2.5 mQ235 / Q345R · 6 mm
12 T12 t12 t (24 t)8.0–9.0 × 2.5 mQ235 / Q345R · 8 mm
15 T15 t16 t (32 t)9.0 × 2.5 mQ235 / Q345R · 10 mm
20 T20 t16 t (32 t)9.0 × 2.5 mQ235 / Q345R · 10 mm

All models are slide-type tilt trays with a built-in underlift; deck / winch and lift capacities match the model rating, and the underlift tows up to roughly double. Decks are checkered or smooth plate in Q235 (standard) or Q345R higher-strength steel, thickness by model, on a subframe matched to your chassis. Bed length is built to your chassis and market — send your chassis and the style you want and we'll spec the exact carrier.

Standard Build

What comes on every carrier

📐

Slide + tilt deck

Hydraulic slide-back and tilt-down for a low drive-on angle; smooth or checkered Q235 deck plate.

🪝

Built-in underlift

Hydraulic wheel-lift under the deck — tow a second vehicle behind the loaded bed (up to ~32 t by model).

🛠

Matched winch

Deck winch sized to model capacity (4–20 t) to pull non-runners straight up the tilted deck.

✓

DOT-standard hydraulics

Italy Hydrocontrol valves and DOT-standard cylinders, pump and hoses; wired 12V/24V lighting.

🌎

USA / AU / EU styles

American slide, Australian tilt-tray and European bodies built to your market's look and rules.

🛡

Built to your chassis

Subframe and bed length matched to your chassis; epoxy paint, EP anti-corrosion coating optional.

Selected Builds

Decks for every market

Real carriers off our Suizhou line — American slide beds, Australian tilt-trays and specialty decks, built to order across 39+ countries.

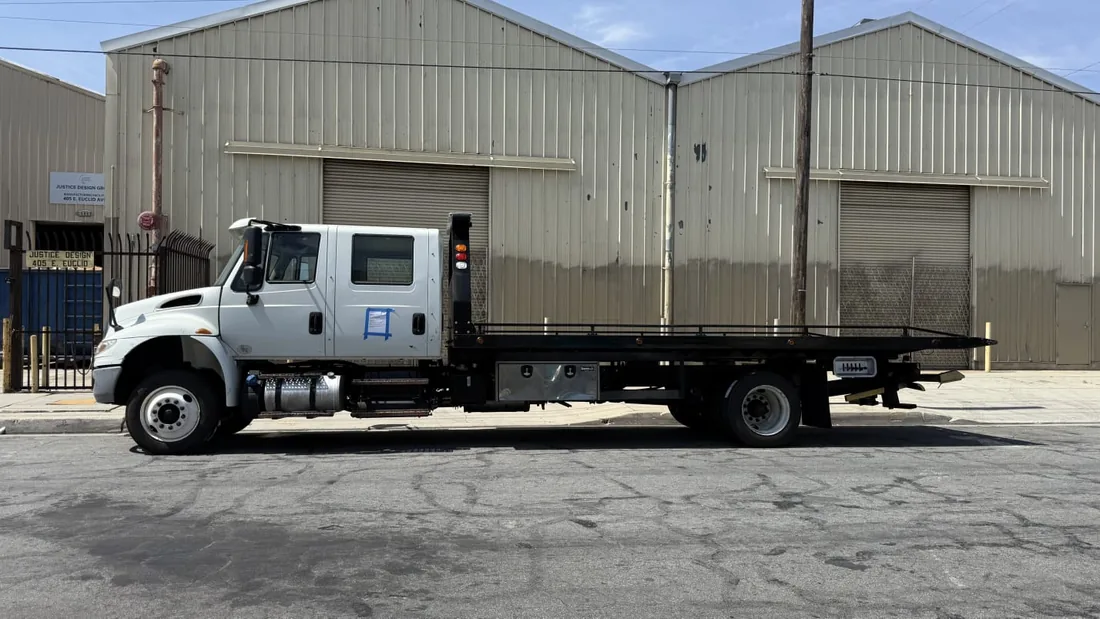

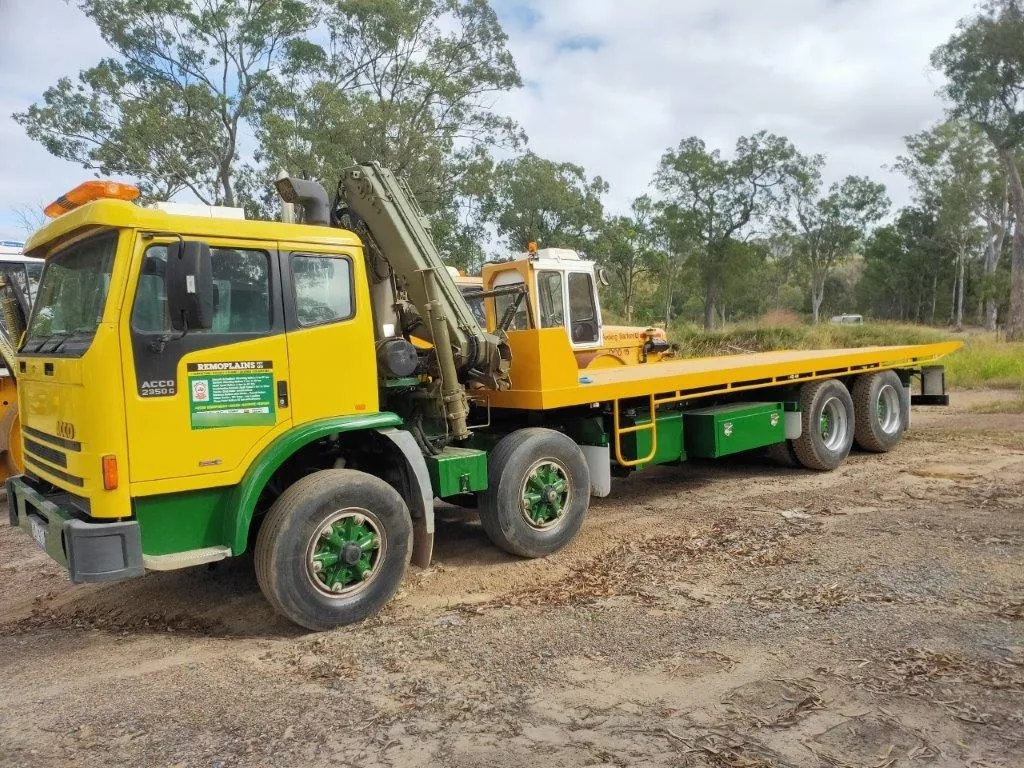

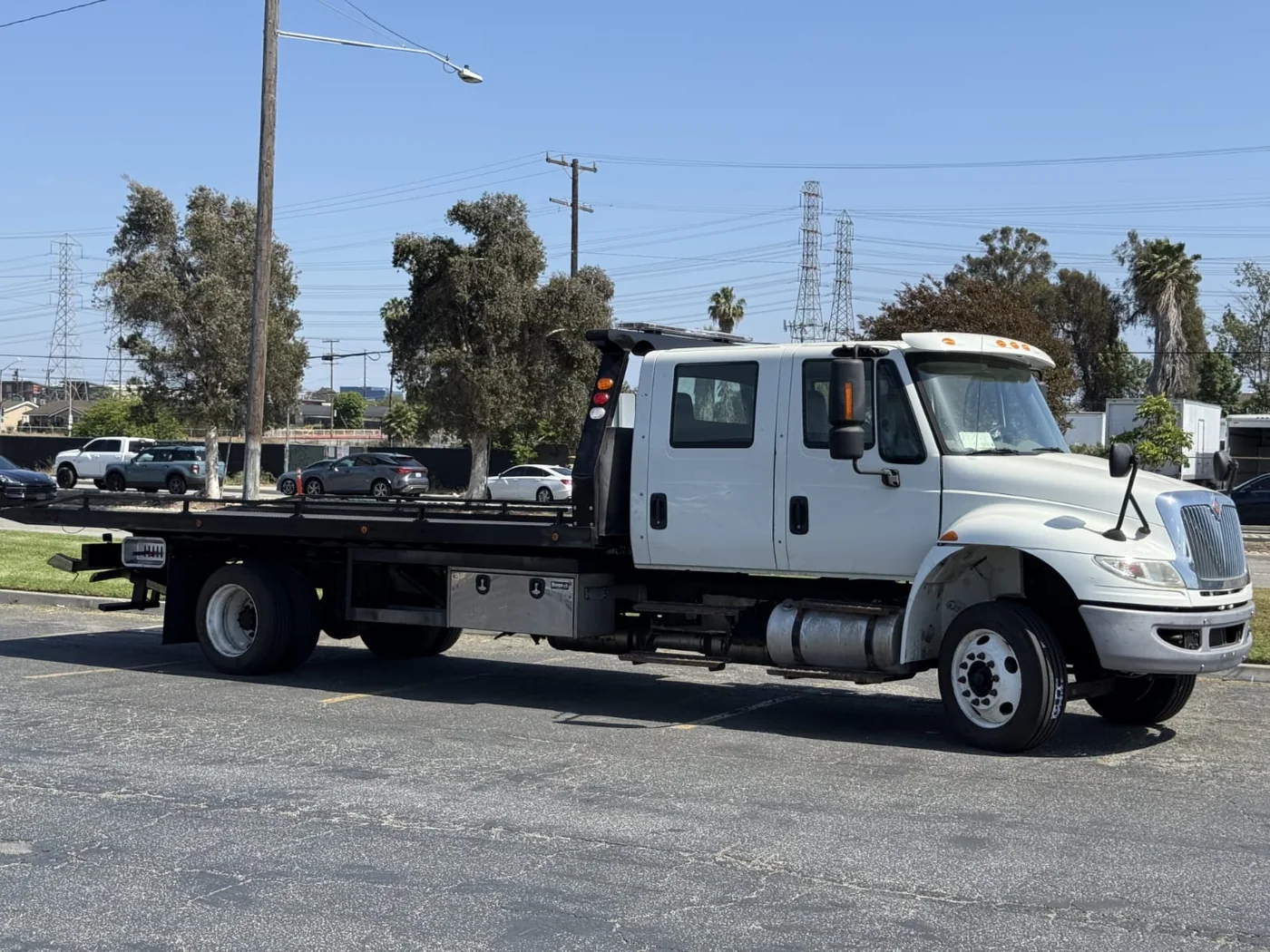

USA-style flatbed carrier tow truck
USA slide · road-ready

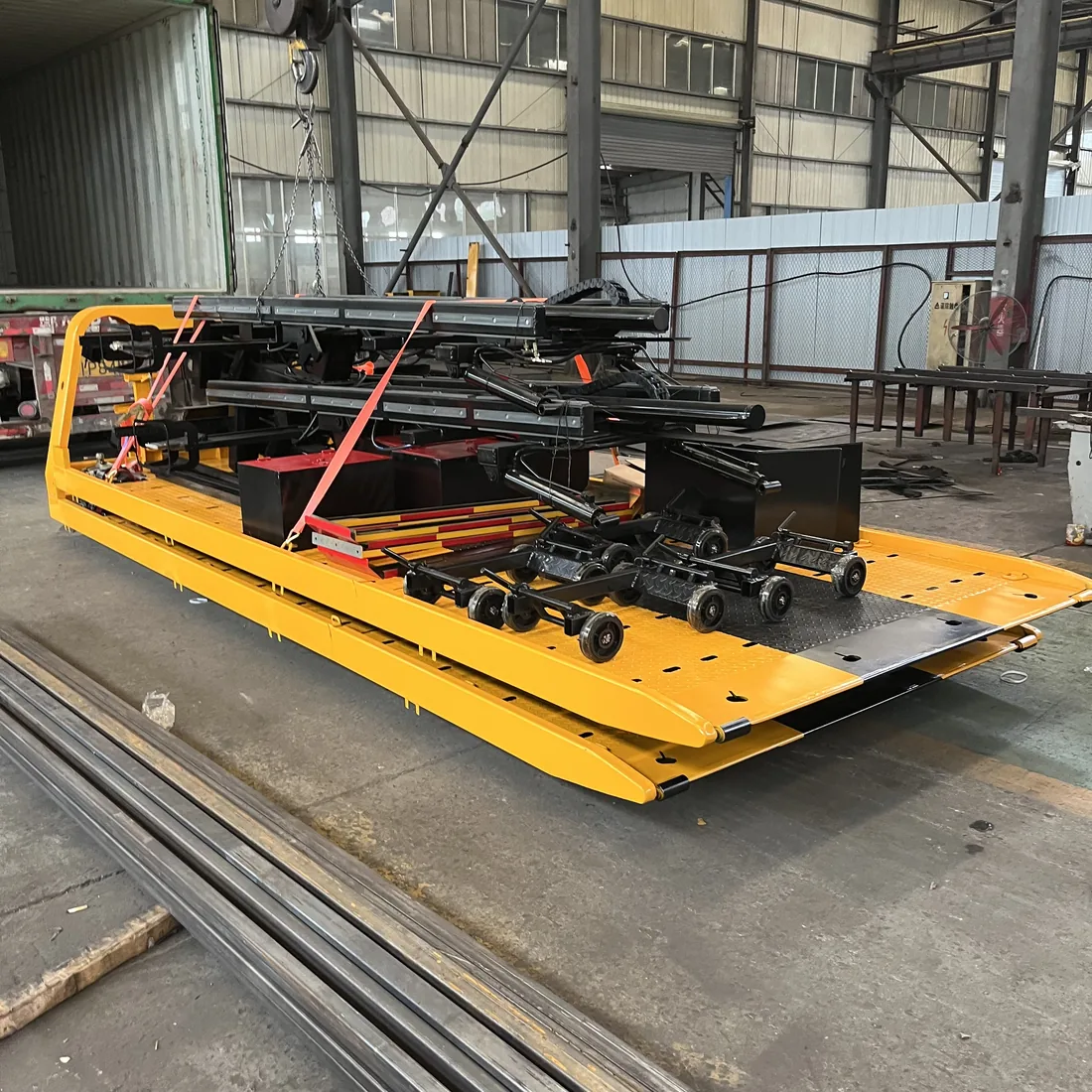

Chinese-standard flatbed carrier bed with accessories
China Standard Bed

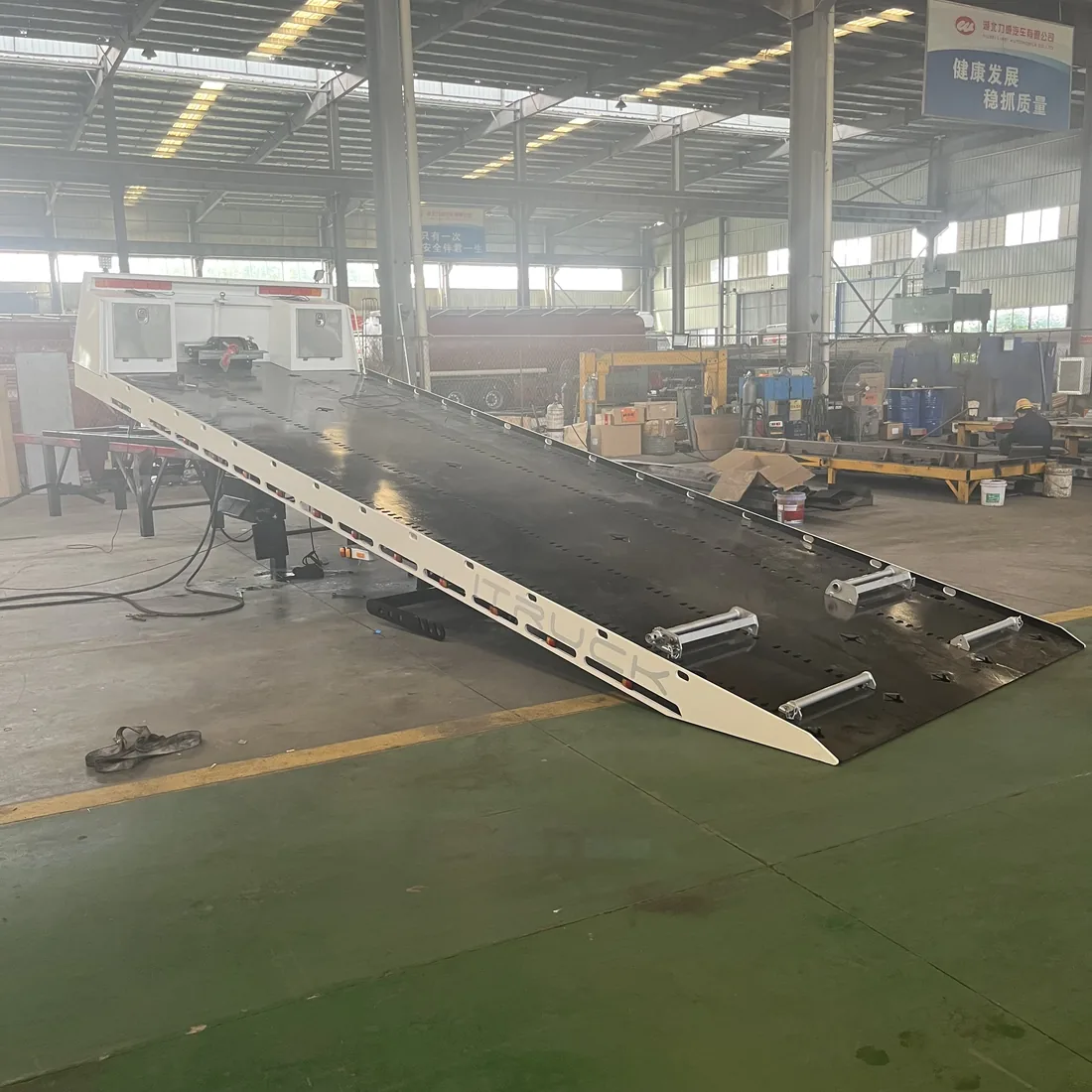

Australian tilt-tray flatbed at load angle
AU tilt-tray · load angle

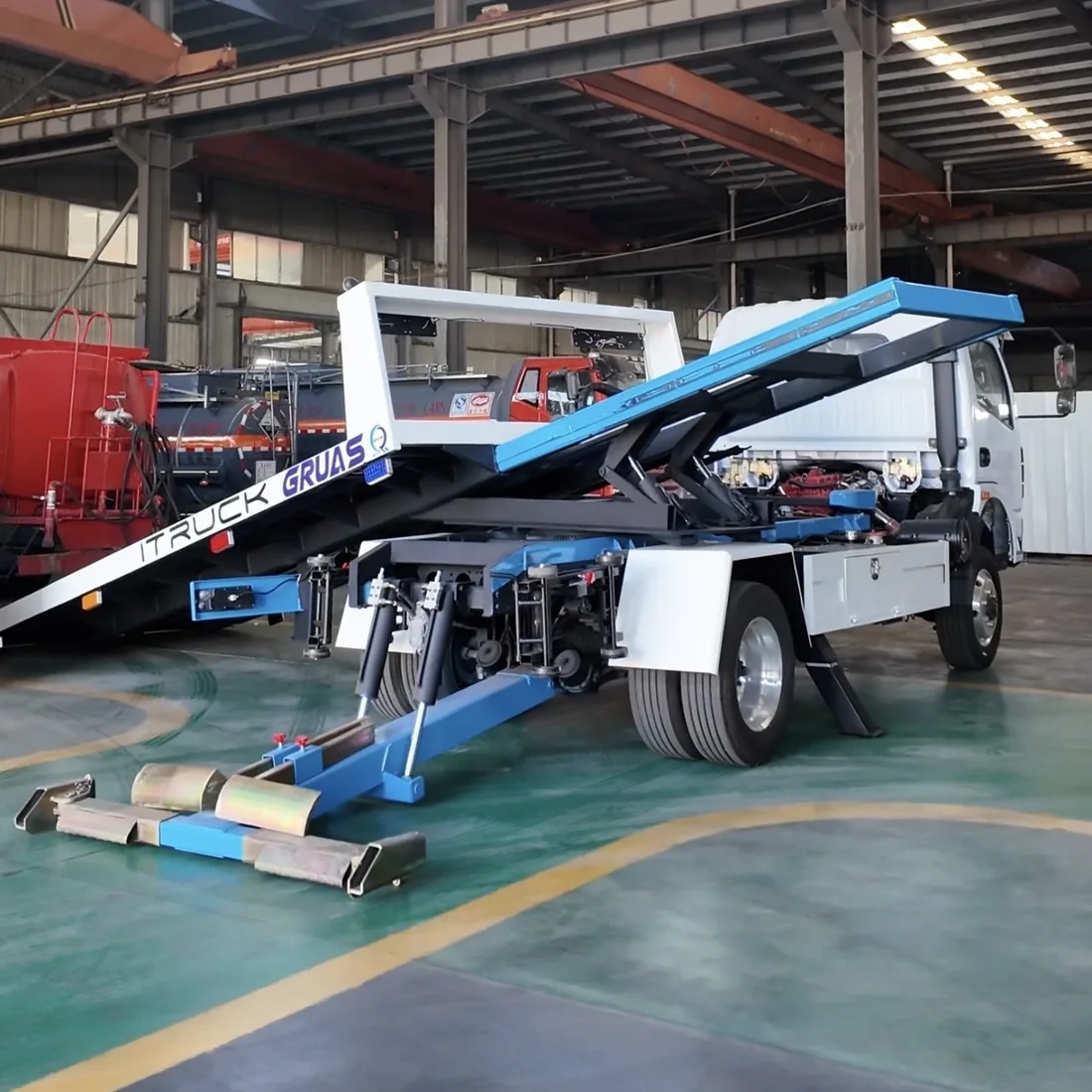

Rotating deck flatbed carrier
Rotating deck · road-ready

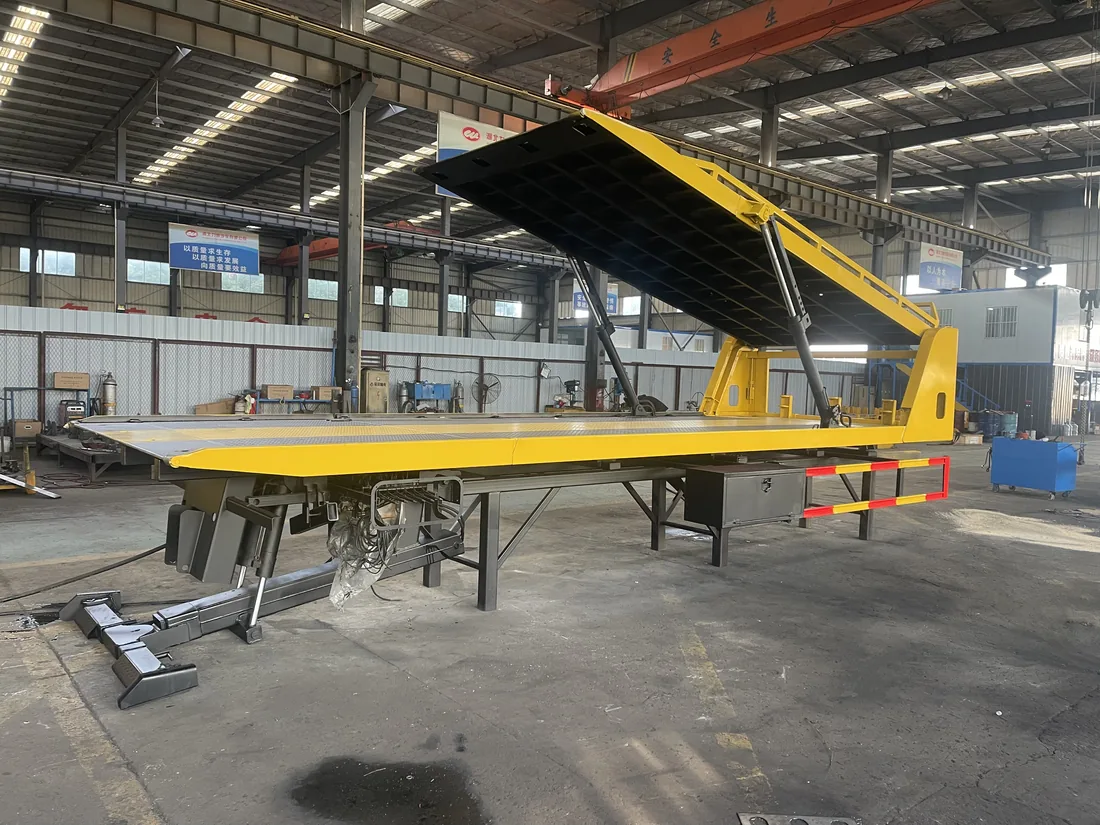

Double-deck flatbed carrier with upper deck raised
Double Deck

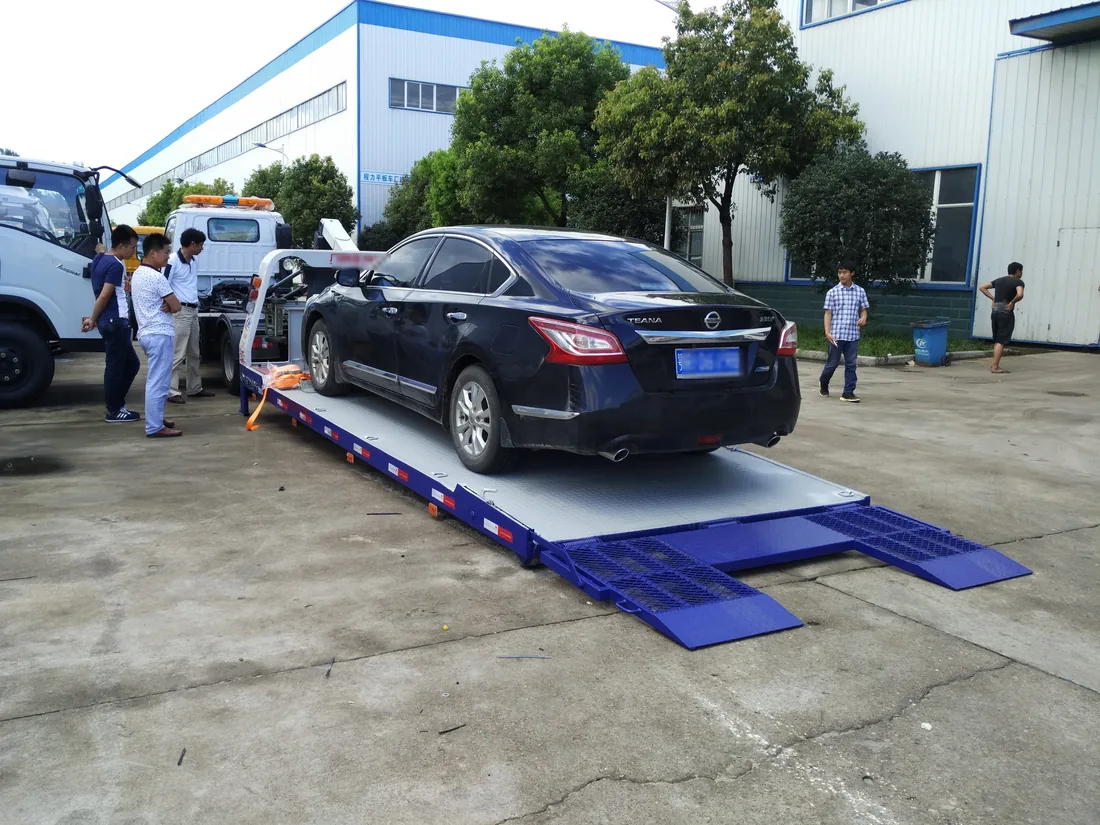

Drop-down flatbed bed loading a car with rear ramps
Drop Down Bed
Signature Styles

Two decks worth a closer look

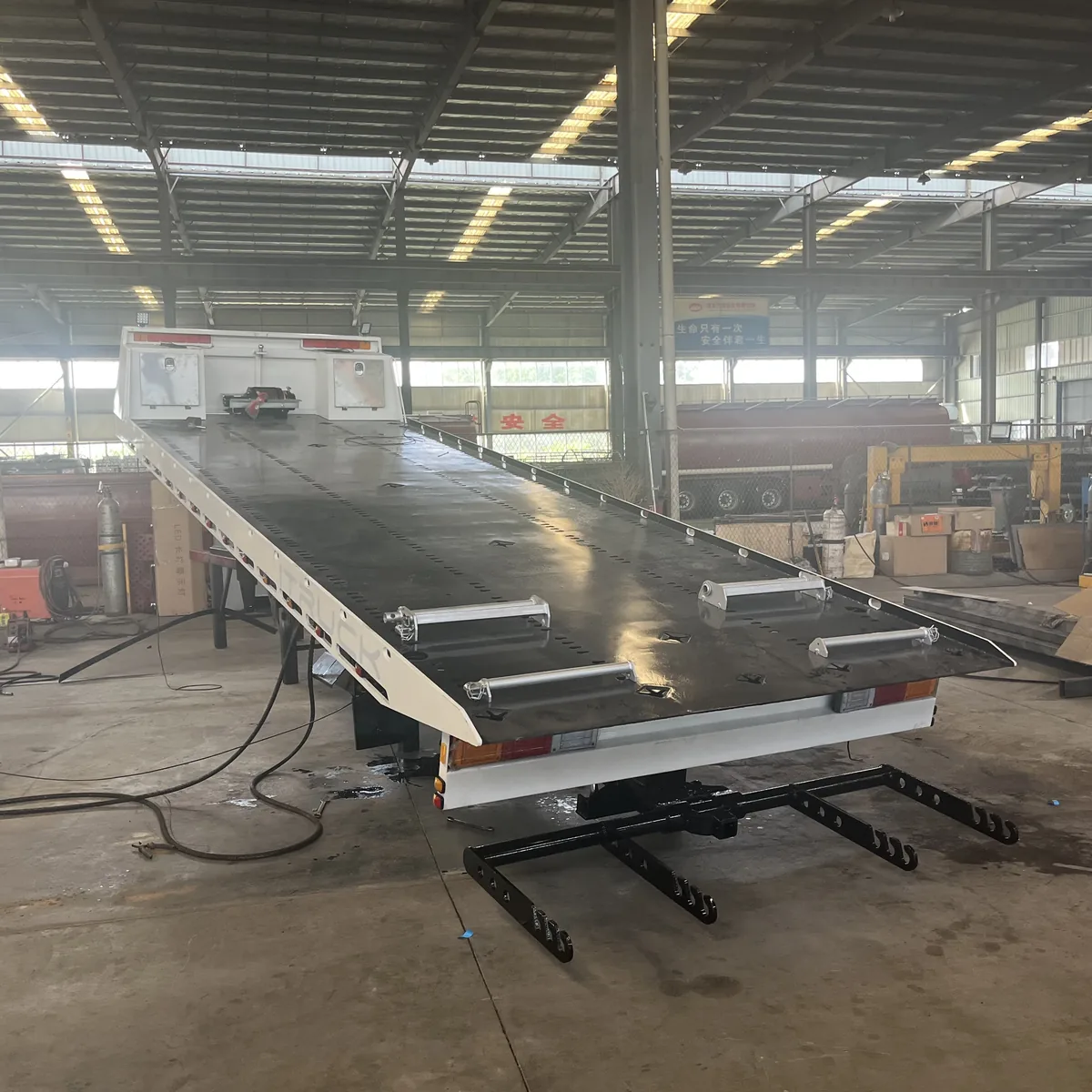

Australian tilt-tray flatbed carrier
Australian Tilt-Tray

Built to Australian spec

Known in Australia as a tilt tray, this is our slide-and-tilt deck produced to Australian specifications for compliance-minded operators — low load angle, full headboard rack and detailing to suit AU rules:

  • Double-layer subframe
  • In-beam lift cylinder
  • QuickLash tie-downs
  • Wireless remote

Engineer certificate: we supply drawings and documentation to support your application — final certification still needs correct local installation and know-how, so plan for that before ordering.

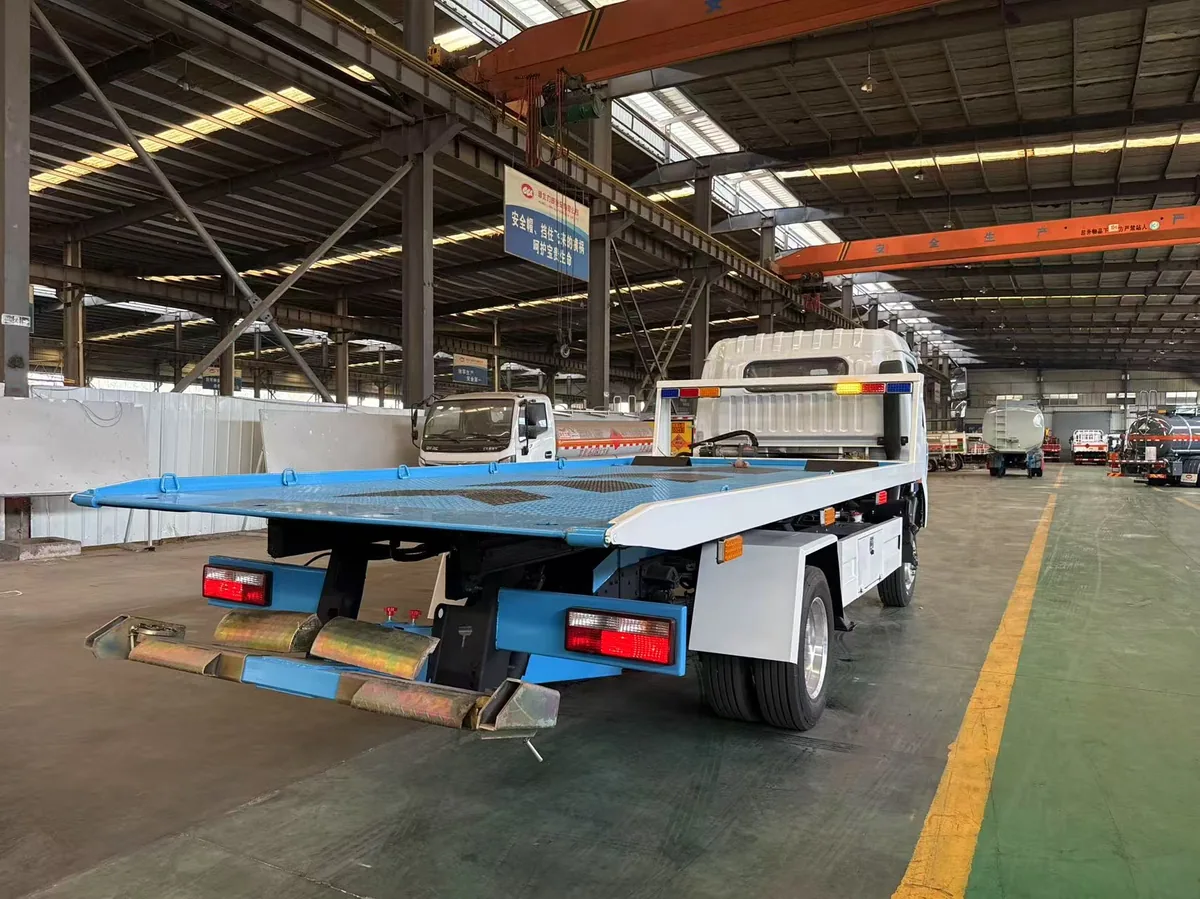

Rotating turntable flatbed carrier
Rotating Deck

Load from the side

A carrier deck on a turntable that rotates so you can load and unload to the side of the truck — invaluable in tight yards, workshops and roadside spots with no room to reverse straight in. Keeps the low load angle of a slide deck, adds side access.

  • 270° deck rotation
  • Sliding winch
  • Wireless remote
Styles & Options

More ways to build it

Will it fit your truck?

Chassis dimensions vary, so every body is built to the truck it goes on. Measure the points below and send them to us — we come back with a fitted configuration and a price.

Will it fit your truck?
Will it fit your truck?
Get the measurement guide (PDF) →
Tell us your chassis & deck style —
we'll spec the carrier and quote in 24 h.
