Rotator Wreckers 16–100 Ton — 360° Continuous Rotation Recovery

What it is

Recover from any angle — no repositioning

A rotator carries its boom on a slewing turret that rotates a full 360° continuously, so the operator can lift a casualty, swing it clear and set it down anywhere around the truck without moving the chassis. That makes it the tool for overturned trucks, off-road recovery and tight highway scenes where a fixed-boom integrated wrecker can't reach. iTruck builds rotators from 16 to 100 ton with multi-stage HG70 booms, a hydraulic underlift for towing, and full outrigger stabilisation — every unit engineered to your chassis.

Model Range

Rotator line-up & capacities

Model	Boom lift (45°)	Wheel-lift	Towing	Main winch	Boom reach	CA min ¹	Rear axles ²
16 T	16,000 kg	16,000 kg	32–48 t	2 × 8 t	7.7 m	≥5,000 mm	tandem

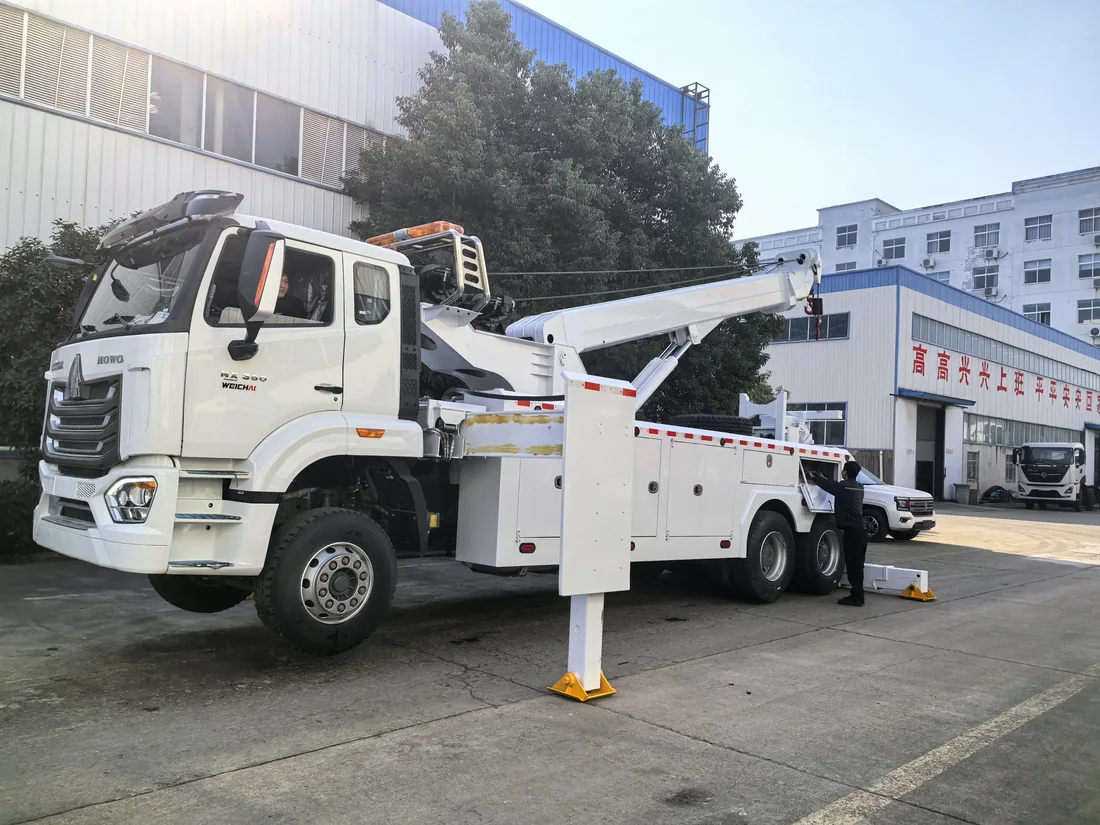

20 T	20,000 kg	16,000 kg	32–48 t	2 × 10 t	9.6 m	≥5,500 mm	tandem

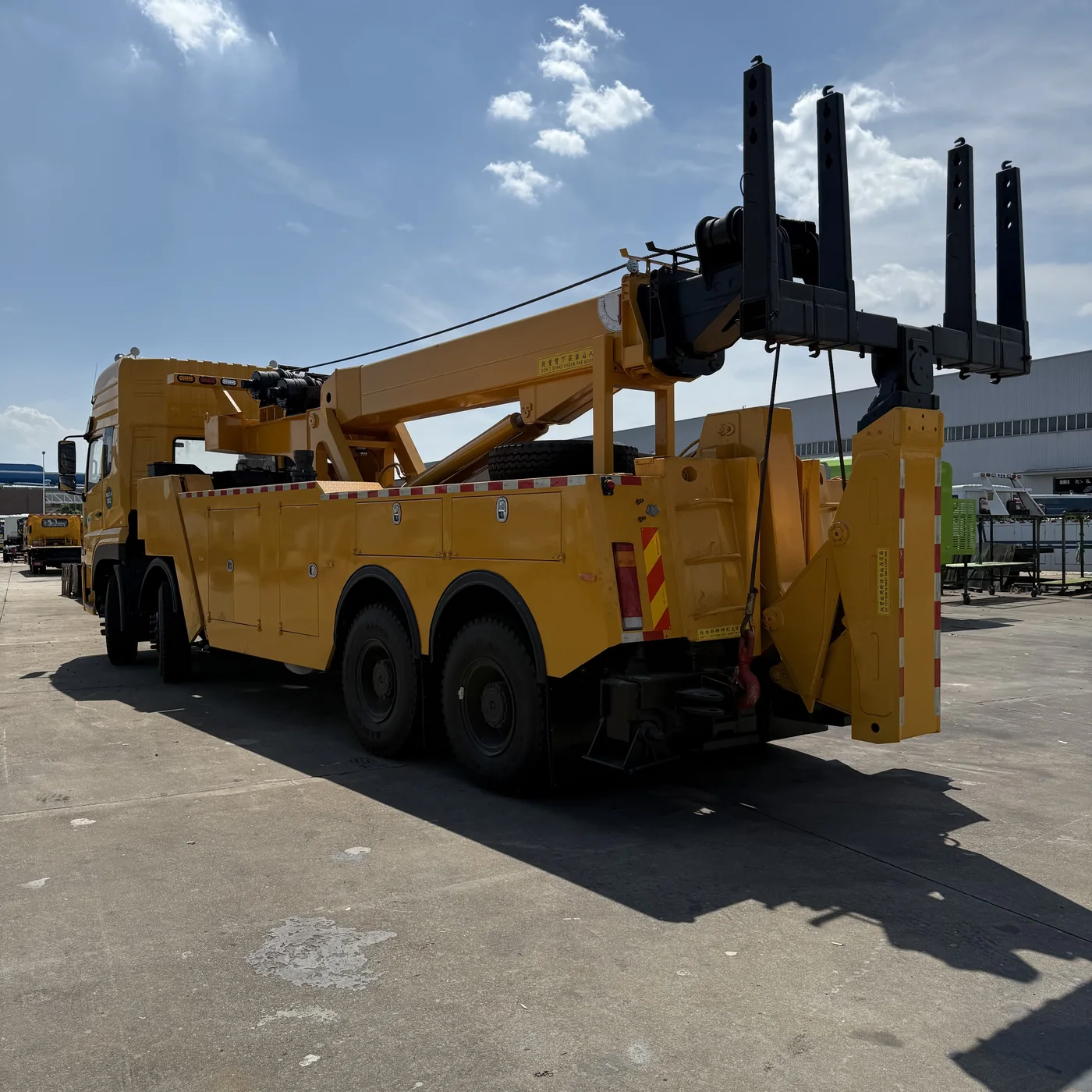

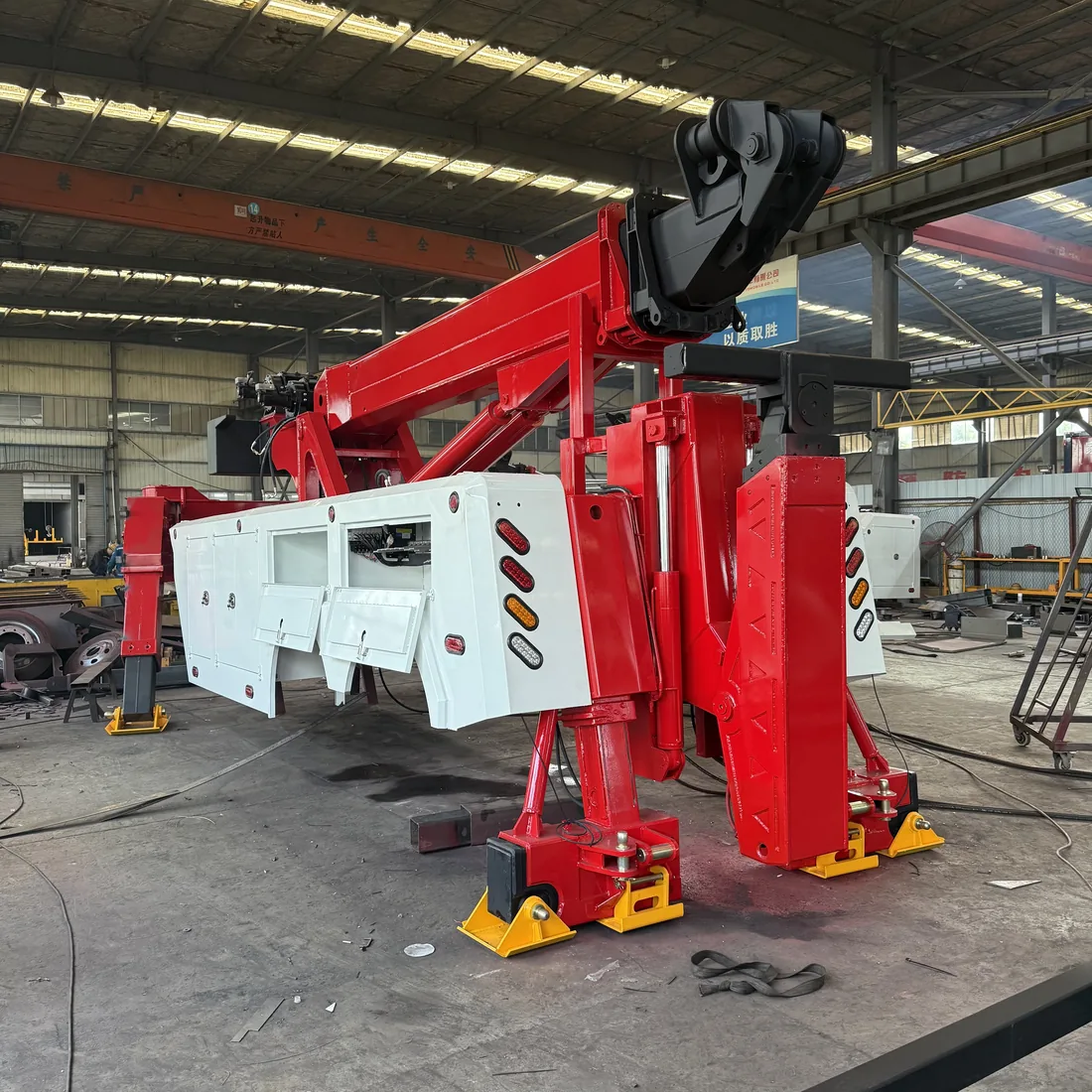

30 T	30,000 kg	16,000 kg	32–48 t	2 × 15 t	11.0–12.1 m	≥6,000 mm	tandem / tri
40 T	40,000 kg	16 / 25 t	32–48 / 50–75 t	2 × 20 t	11.5 m	≥6,500 mm	tri-axle

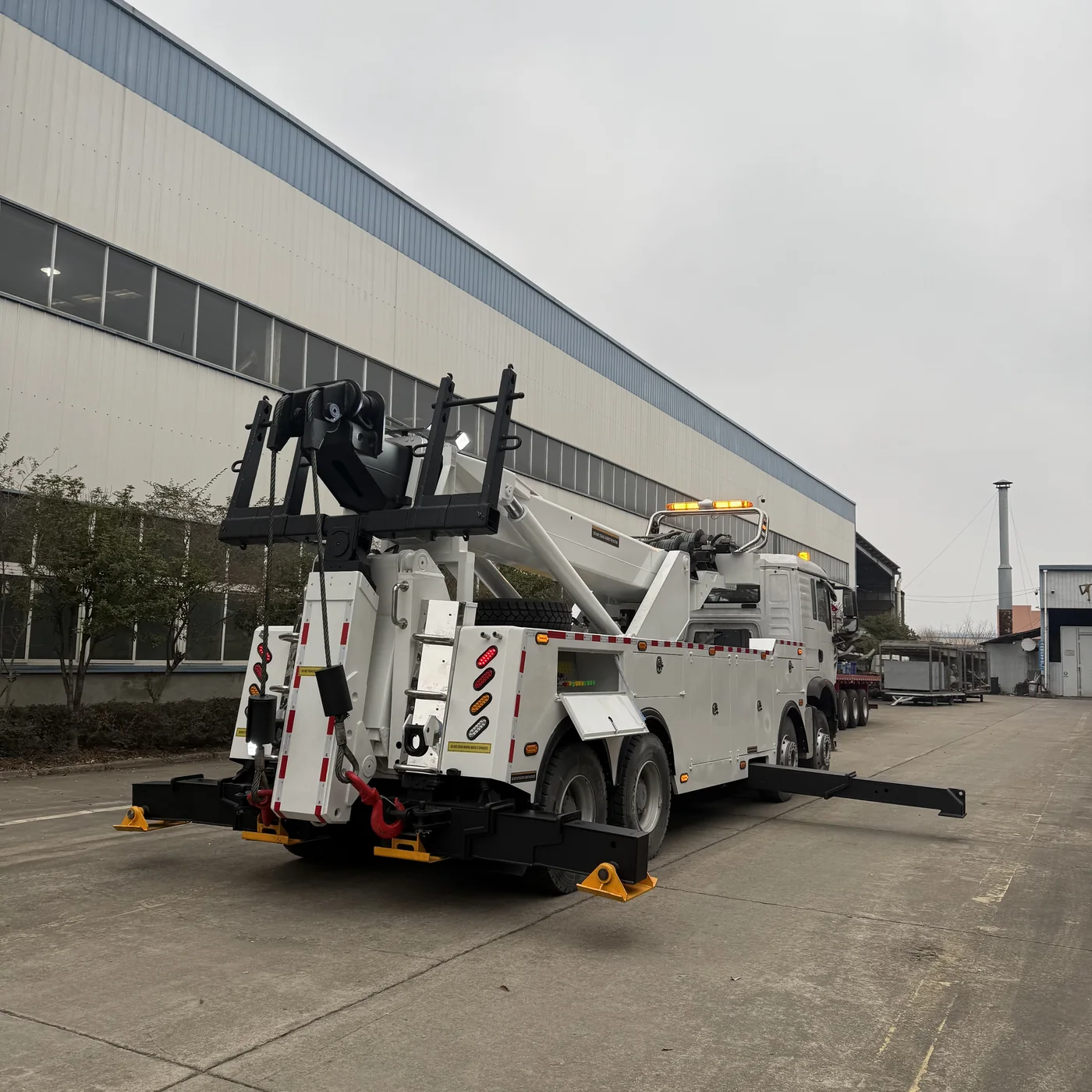

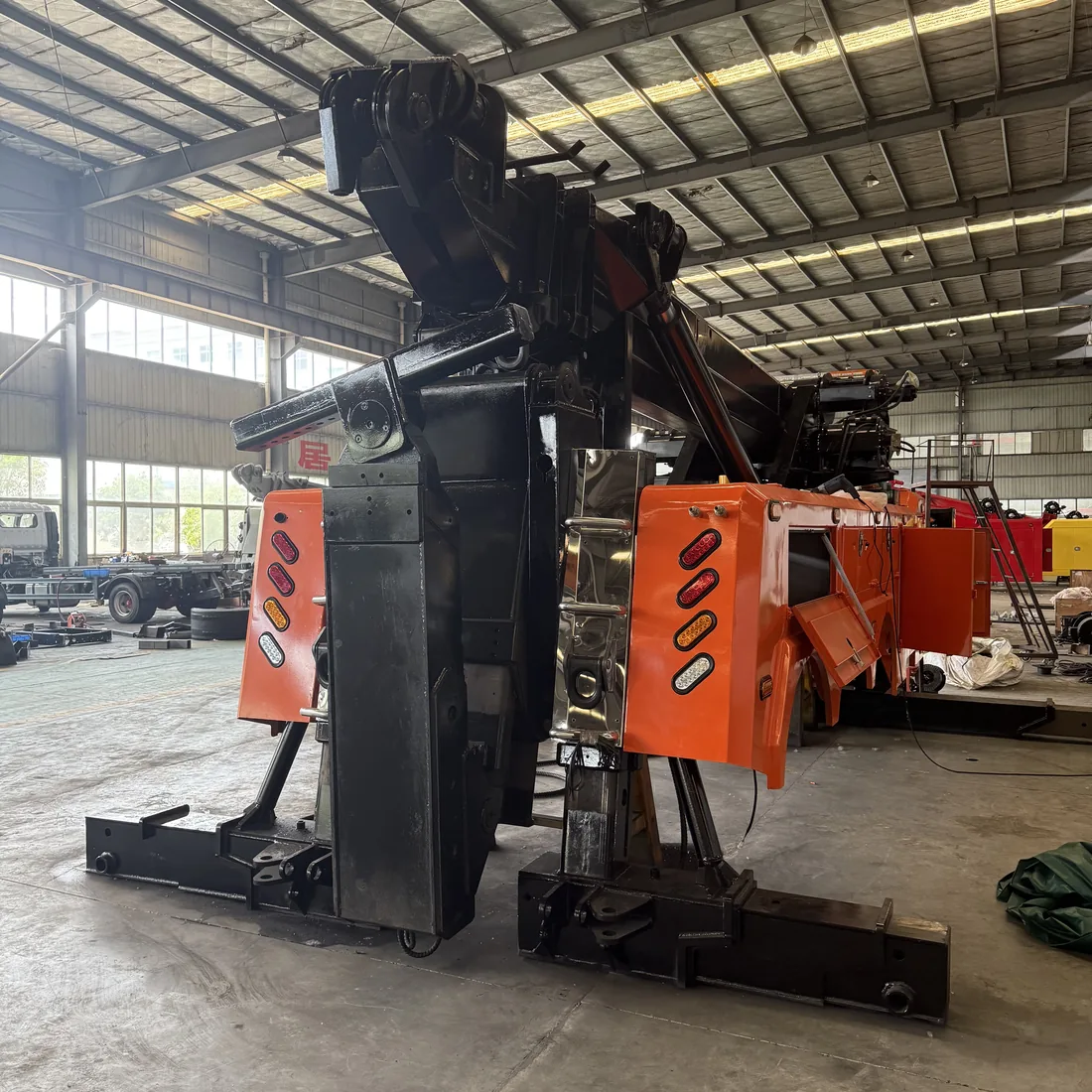

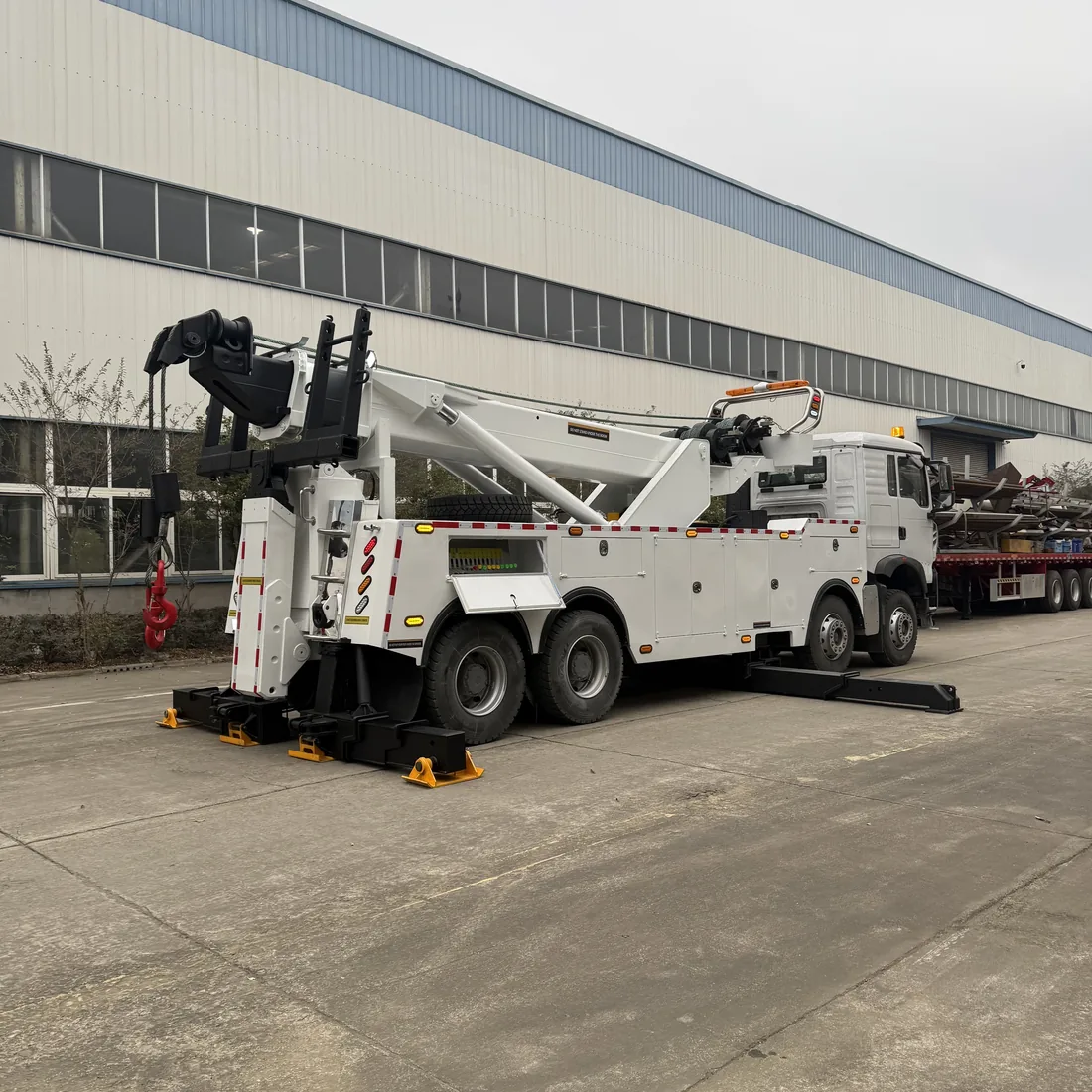

50 T	50,000 kg	28,000 kg	56–85 t	2 × 25 t	12.0 m	≥6,500 mm	tri-axle

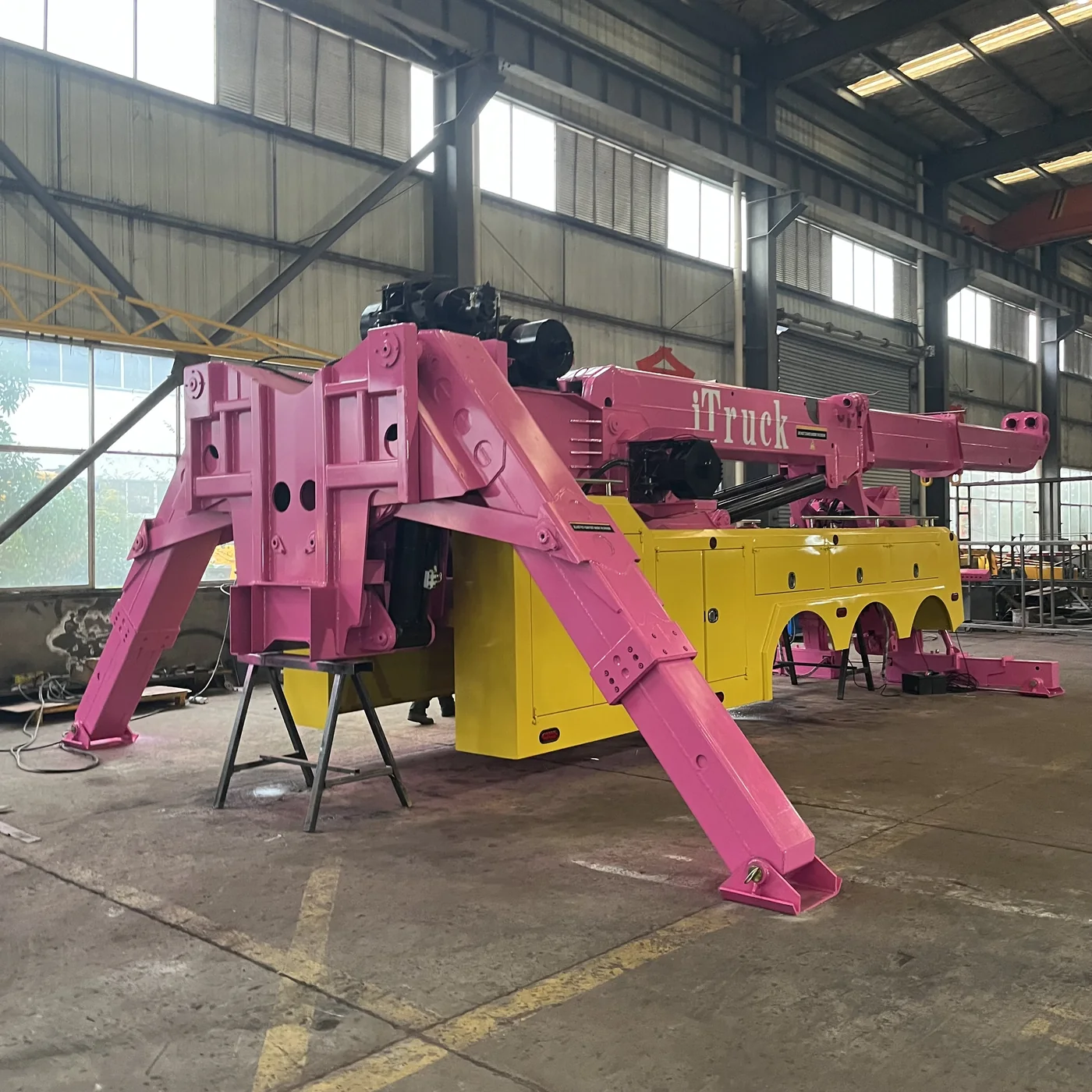

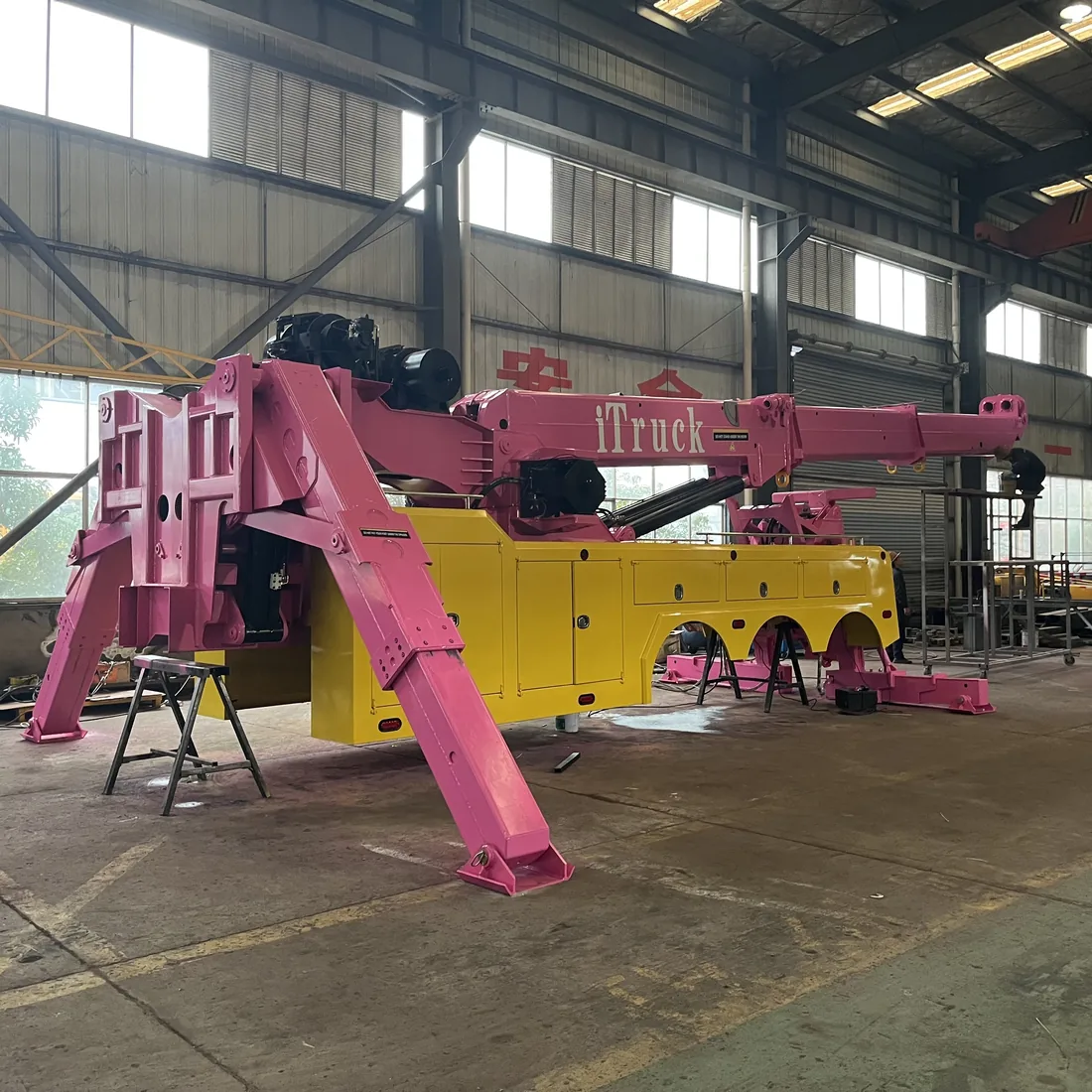

75 T	75,000 kg	28,000 kg	56–85 t	2 × 30 t	13.0 m	≥7,000 mm	5-axle
100 T	100,000 kg	28,000 kg	56–85 t	2 × 50 t	13.0 m	≥7,000 mm	5-axle

Warranty: 2 years on all rotators, covering manufacturing defects under normal operation and maintenance. 6 t and 8 t light rotators are also available on request — contact us for specifications.

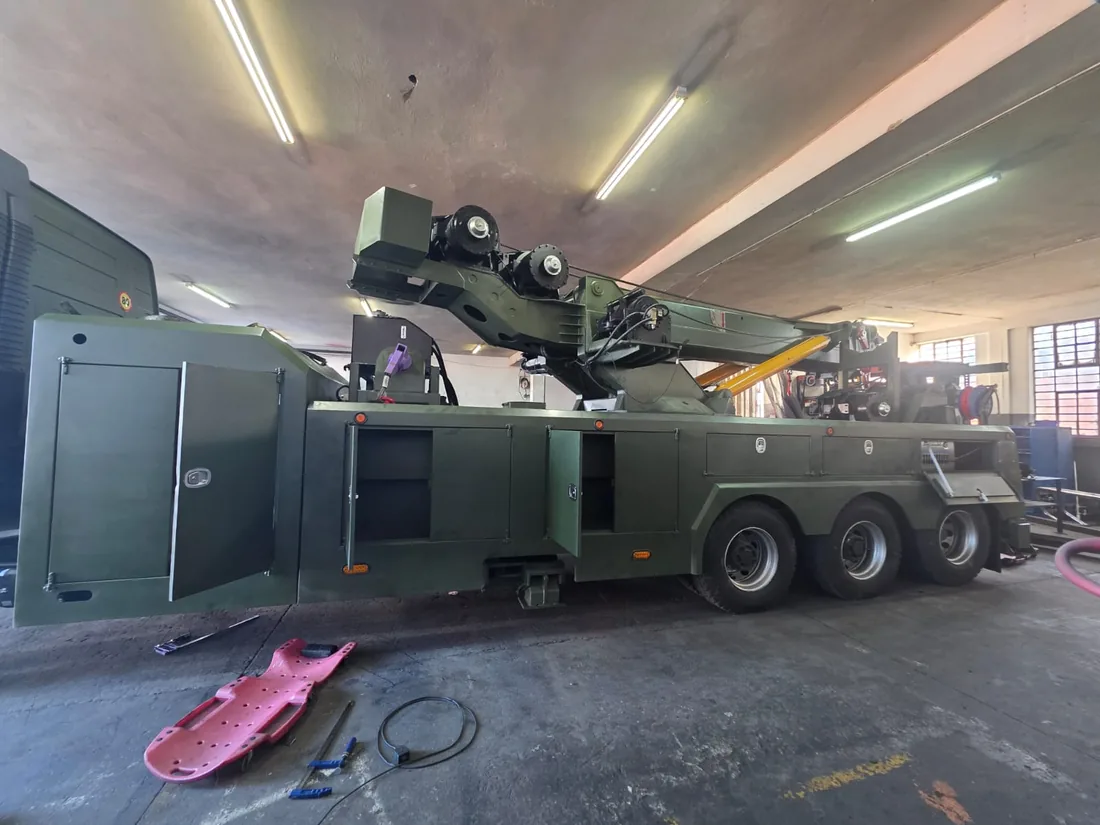

Boom lift is the retracted rating at 45°; all booms rotate 360° continuously and tilt to 65°. Booms are HG70 — 2-stage on 16–20 T, 3-stage from 30 T. A turret-slide boom (extra horizontal reach, ~13 m on 50 T) and a 4-stage boom (up to 15 m reach on 50 T) are optional. Winches are planetary, DOT-certified; extra drag / side winches optional.
¹ CA = distance from the cab to the centre of the last axle (not to the rear of the body); heavier units need more margin. ² Rear-axle setup is on the finished chassis — rotators run a rear tandem up to 30 T, a tri-axle at 40–50 T and a 5-axle chassis at 75–100 T. Full per-model spec sheets (extended ratings, outrigger spread, wire specs) on request — send your recovery weight and chassis and we'll spec the exact unit.
